Specifications

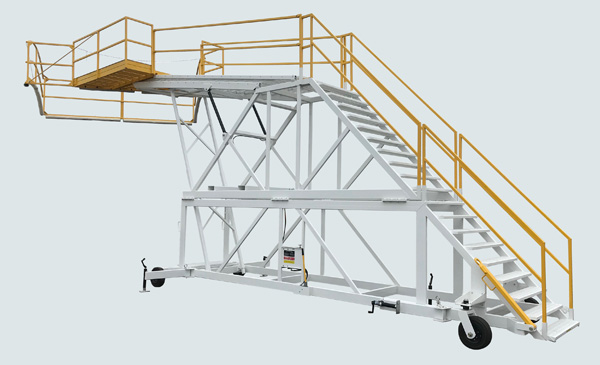

- Designed to safely access crown of all narrow body aircraft
- Contoured hydraulically adjustable cage to match narrow body fuselage
- 750 lb. platform capacity, 2,500 lbs. overall
- Hydraulically elevates 186.5” to 300”
- Double acting hydraulic hand pump with two 2” dia. x 35” stroke lift cylin-ders, plus an air over hydraulic system
- Hydraulic restrictors in case of pressure failure
- Safety strut with pins
- Non-slip steel grip-strut steps
- Two fall arrest anchor points in upper platform
- Fixed rear and swivel front casters pro-vide ease in maneuverability
- Hand adjustable screw jacks on each corner for stability
- Drop down pole to tow stand
- 16” diameter solid tires
Options
- 12 volt work light pkg.
- Safety mesh on contoured cage
- Saloon style entry doors in upper platform
Shipping Information
- Weight: 8,000 lbs.
- Dimensions:
- Length: 53'
- Ships in 3 pieces (53' step deck with required riser or load lever)
