Specifications

• For: 727 Clamp Type, 727 Pin Type**, 737 Clamp Type, 737 Pin Type, 757 Clamp Type, A320 Clamp Type

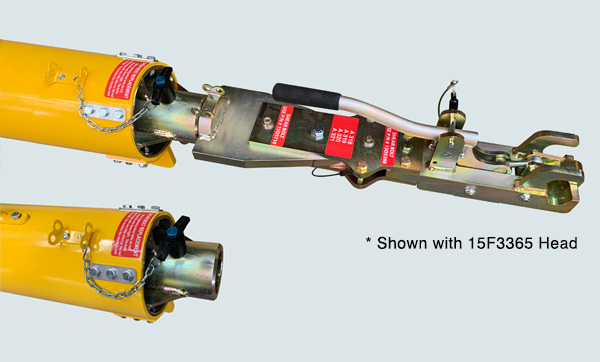

• Quick change multi-head, narrow body towbar
• PN 15F2515 is the body only, see head options below
• 8” x 15’ high strength aluminum tube
• Fully retractable hydraulic running gear for adjustable height
• Safety lock system to avoid separation from aircraft
• Durable powder coat finish
• Quality shear bolts for aircraft protection
• Extra set of shear bolts included
• Solid tires

Options

• Foam filled tires
• Pneumatic tires
• Cushioned lunette assembly
• Spliced tube for easy transport
• Head Options:
  • 15F2539 B727 clamp type
  • 15F2518 A300/310, B727
  • 15F3813 B737 100-900
  • 15F3364 B737 600-900 + Max + NG
  • 15F3365 A318-A321 NEO
  • 15F2519 B757
  • 15F2549 Fokker 70/100
  • 15F3736 A220 100/300

Shipping Information

• Shipping Weight: 350 lbs.
• Shipping Dimensions:
  • Length (no head): 195"
  • Width: 30"
  • Height: 25"


• Crated Weight: 770 lbs.
• 60 lbs. per extra head
• Crated Dimensions:
  • Length: 217"
  • Width: 26"
  • Height: 28"
